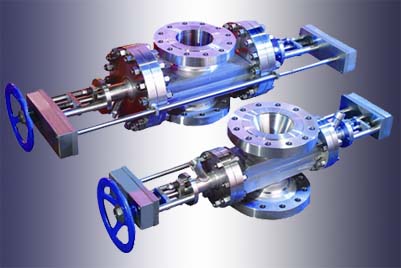

GUICHON VALVES manufacture various types of slide valves for on/off service, mostly designed for severe working conditions in the petrochemical sector (i.e. fluids containing hard particles, powders, high temperature).
|
| |
|
| |
The main features of these valves are :
- through conduit type
- no retention area
- enabling pigging of the line
- metal-to-metal seating or lamellar seats
- seating surfaces protected from process medium during opening/closing strokes
Main optional arrangements
- hard faced seating surfaces for a better resistance
- removable bottom for body cleaning
- additional connections for draining or steam sweeping
- spring loaded seats
Operation
- handwheel or manual gear
- pneumatic, electric or hydraulic actuator
Materials These valves can be manufactured in a wide choice of stainless steels and special alloys available for fabricated (welded) construction.
Range
Size 2’’ to 48’’ 150 to 600 Lbs
DN 50 to DN 1200 PN 10 to PN 100 |
|
 |
Product |
| |
 |
Through conduit slide valve, floating seats
Type : 202, 222, 252
- Fabricated construction
- Size 4 in. to 42 in., class 150 to 300
- Carbon steels or low alloy steels
|
| |
 |
Slide gate valve w. fixed seats
Type : 205, 225, 255
- Fabricated construction
- Size 4 in. to 42 in., class 150 to 300
- Carbon steels or low alloy steels
|
| |
 |
Parallel seated gate valve w. substituting ring
Type : TLV3
- Fabricated construction
- Size 10 in. to 42 in., class 150 to 300
- Carbon steels or low alloy steels
|
| |
 |
Slide gate valve for high temperature
Type : 207, 227, 257
- welded construction
- Size 3 in., class 300
- 321 stainless steel
- Pneumatic actuator
|
| |
 |
Double slab valve for high temperature
Type : 208, 228, 258
- welded construction
- Size 1 in. to 8 in., class 150 to 2,500
- Stainless steel and special alloys
|
|
